Metal Shell Digital Ultrasonic Flaw Detector Mahcine For NDT Testing

Brand Name : LEEB

Model Number : Uee952

Certification : CE, FCC, EAC, ISO

Place of Origin : China

MOQ : 1 Set

Price : Based on quantity

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 1000pcs per month

Delivery Time : 7 work days

Packaging Details : Equipment box

Product Name : Metal Shell Ultrasonic Flaw Detector

Working Frequency : 0.5~20MHz

Shell : Metal

Dimension : 240×185×55mm

Probe type : Single,Thru,Dual

Application : Flaw Detection, NDT Testing

Contact Now

Metal Shell Digital Ultrasonic Flaw Detector Mahcine For NDT Testing

3 Years Warranty Metal Shell Ultrasonic Flaw Detector With PC Connection And Reports Printing

Functions & Features:

● IP65 standard, with the durable metal shell (oil-proof, water-proof and dust-proof)
● PC software is available for data analysis, management and reports printing
● DAC and AVG are automatically formed, and can be corrected and compensated
● Functions such as Auto-gain and peak memory improve detection efficiency
● Automatically calculate the φ value equivalent defects
● 13 built-in testing standards are available
● Storage: 500-1000 pieces of A-scan images and data
● The width and intensity of launch pulse are adjustable
● AWS standards are available
● With measuring video function
● 3 years warranty and life-long services.



Application:

● Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws
in the work-piece, such as cracks, welds, blowhole, etc. It Widely used in electric power, petrochemical,
boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.


Technical Parameters:

Model Uee952
Operating Frequency 0.5 - 20 MHz
Scan Range(mm) 0-6000mm
Velocity Range(m/s) 1000～15000
Vertical linearity error ≤3%
Dynamic Range ≥32dB
Horizontal linearity error ≤0.2%
Testing sensitivity ≥62dB (Depth 200mm, Φ2 flat bottom hole)
Measuring channel 100
Storage 500
PC Connection Available
Gain Range(dB) 0-110
Standard Probes

Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9
Angle probe: 4MHz, 60 degree, 8*9 mm, cable Q9-C5
Dimension 240×185×55mm
Weight 1.85kg
Optional Accessories Optional probes, Cables, Calibration blocks, Coupling agent



Pictures:

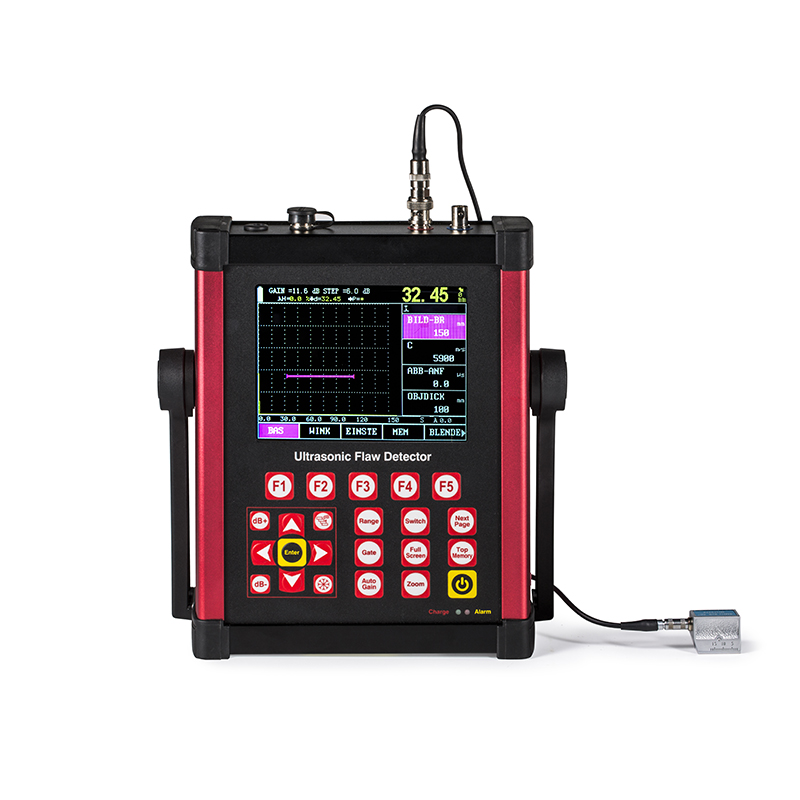

Metal Shell Digital Ultrasonic Flaw Detector Mahcine For NDT Testing
Metal Shell Digital Ultrasonic Flaw Detector Mahcine For NDT Testing
